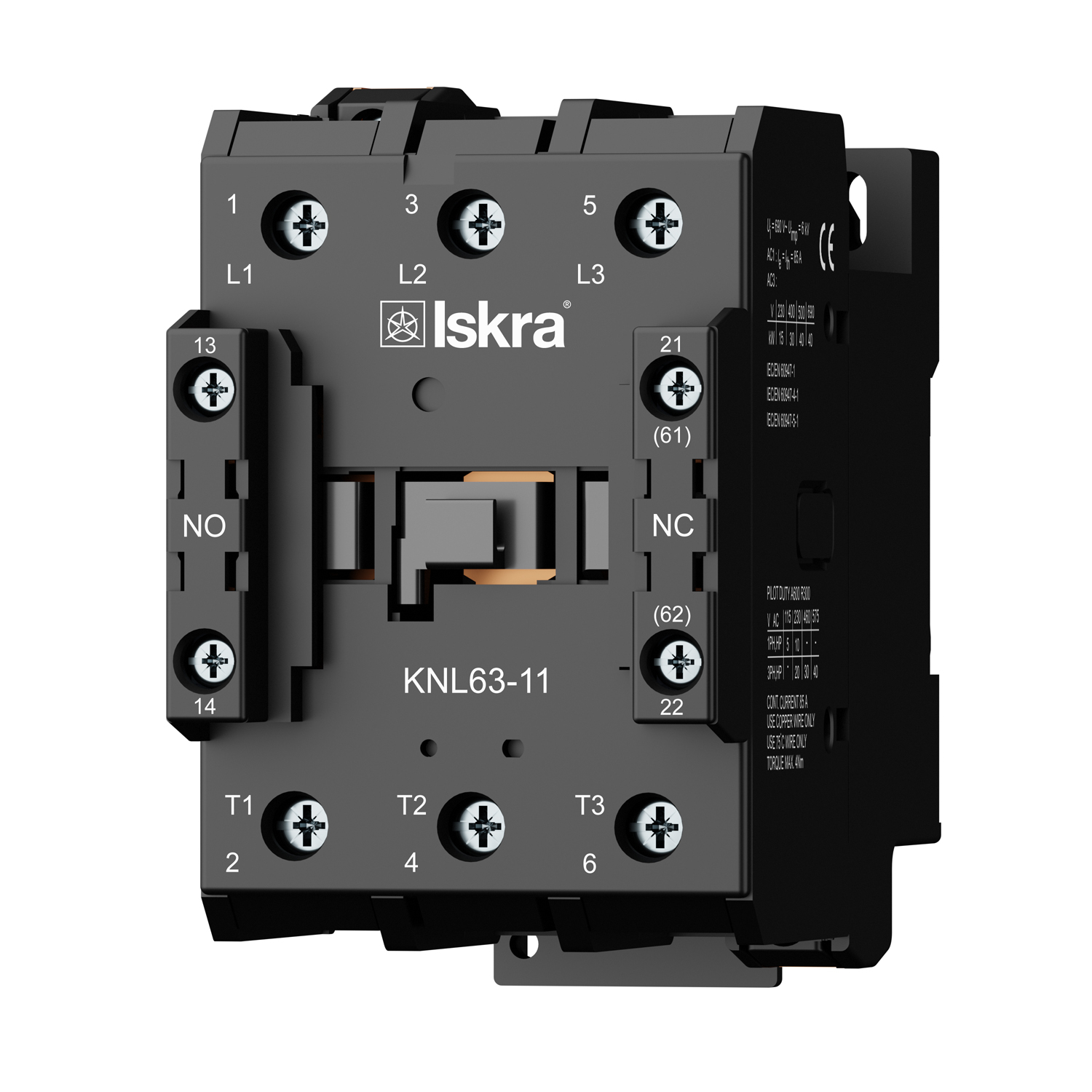

Iskra KNL63-11 Motor Contactor

The contactors are designed for switching electric motors and other resistive, inductive and capacitive loads.
Mounting on a 35 mm DIN rail (EN 60715) or using two screws.



Type KNL63-11
Width 65 mm
Accessories
  • Two-pole auxiliary contact blocks
  • Four-pole auxiliary contact blocks
  • Overload relay
  • Interlock
Standard coil voltages, 50/60 Hz B7 – 24V    D7 – 42V
E7 – 48V    F7 – 110/125V
M7 – 220/240V    Q7 – 380/415V

Back to Iskra motor contactors

Contact Appel with the type designation and application details for product selection.

Technical data
Standards
IEC/EN 60947-4-1, IEC/EN 60947-5-1, IEC/EN 60947-1, UL 508
Approvals UL, CSA, GOST
Width 65 mm
Rated operational current AC-3 Ie
Three-phase Three-phase Three-phase 230V - 63A 400V - 63A 690V - 45A
Rated motor power AC-3 Pm
Three-phase Three-phaseThree-phase 230V - 15 kW 400V - 30 kW 690V - 40 kW
Degree of protection IP 20
Weight
0,9 kg
