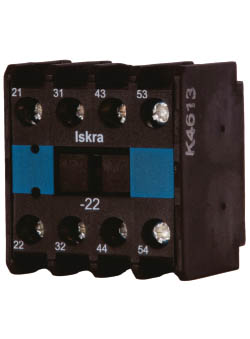

Two- and four-pole auxiliary contact blocks.
For use with Iskra KNL22, KNL30 contactors, according to the German product catalogue.
Types
| Number of poles | Types |
|---|---|
| 2 | NDL3-02, NDL3-11, NDL3-20 |
| 4 | NDL3-22, NDL3-31, NDL3-13, NDL3-40, NDL3-04 |
Rated operational current Ie, AC-15
| Rated operational voltage | Current |
|---|---|
| 230 V | 6 A |
| 400 V | 4 A |
| 500 V | 2 A |
| 690 V | 1 A |
Specify the full type designation, required normally open (NO) and normally closed (NC) contacts, and the contactor type when enquiring.
Back to Iskra auxiliary contact blocks
Contact Appel with the type designation and application details for product selection.
