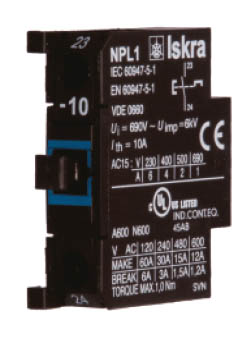

Single-pole auxiliary contact blocks for side mounting.
For use with Iskra KNL9, KNL12, KNL16, KNL18 contactors, according to the German product catalogue.
Types
NPL1-01, NPL1-10
Rated operational current Ie, AC-15
| Rated operational voltage | Current |
|---|---|
| 230 V | 6 A |
| 400 V | 4 A |
| 500 V | 2 A |
| 690 V | 1 A |
Specify the full type designation, required normally open (NO) and normally closed (NC) contacts, and the contactor type when enquiring.
Back to Iskra auxiliary contact blocks
Contact Appel with the type designation and application details for product selection.
