Thermostat TFg 142

Thermostats with silumin (die-cast aluminum) enclosure (IP65) for use in all areas of industry and trade, to monitor and control the temperature.



Applications::
  • Temperature control and monitoring in refrigeration and air conditioning
  • Heating control systems and signal operations for refrigeration compressors
  • Fans, pumps, heaters, etc.
Characteristics:
  • Standard 2 change-over contacts
  • Robust silumin (die-cast aluminum) enclosure(IP65)
  • Great setting scale

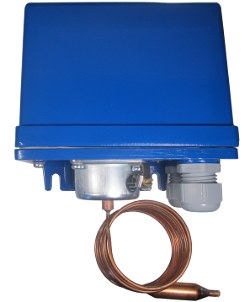

image:TFg 142-5 AC06



thermostat 142
Type Upper switch pt.adjustable from … to °C Difference K Lower switch pt.adjustable from … to °C Standard setting °C Max. temperature sensor °C temperatur sensor charge and type capillary length

TFg 142-1 AA 06 -50 ... -10 1,5 ... 16 -56 -18 / -20 +150 damp / A 2
TFg 142-2 AA 06 -30 ... +10 1,5 ... 16 -39 -4 / -6 +150 damp / A 2
TFg 142-3 AA 06 -20 ... +25 2 ... 18 -28 +4,5 / +2 +150 damp / A 2

TFg 142-3 AD1 06 -20 ... +25 2 ... 18 -28 +20 / +18 +50 liquid / D1 2
TFg 142-4 AD1 06 +5 ... +50 2 ... 18 -7 +40 / +35 +70 liquid / D1 2
TFg 142-5 AD1 06 +25 ... +75 2,2 ... 18 +14 +60 / +55 +100 liquid / D1 2

TFg 142-5 AC 06 +25 ... +75 2,2 ... 18 +14 +60 / +55 +100 liquid / C 2
TFg 142-6 AC 06 +50 ... +100 2,5 ... 20 +34 +80 / +75 +125 liquid / C 2
