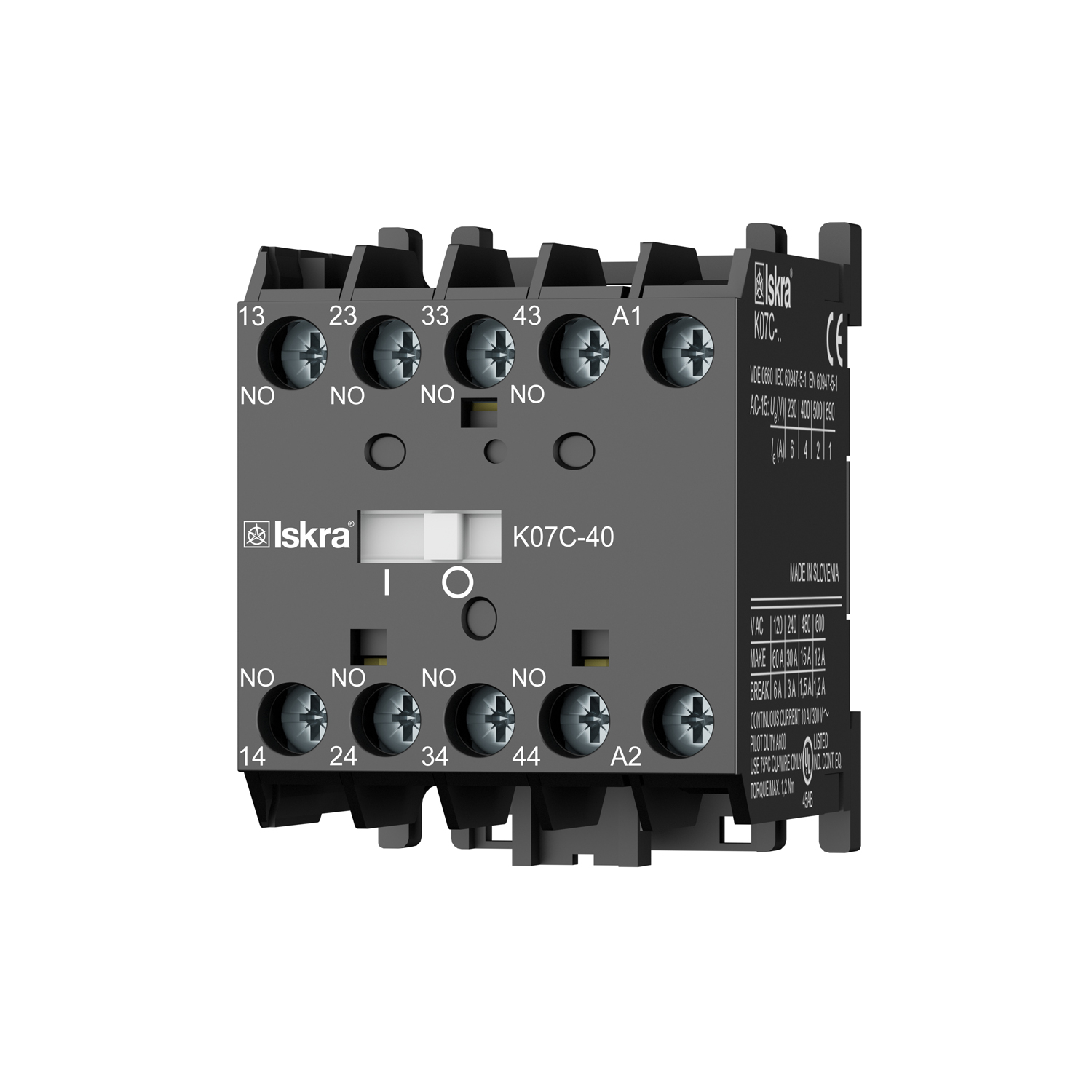

Iskra K07C-40 Contactor Relay

iskra-k07c

Contactor relay
Mounting on a 35 mm DIN rail (EN 60715) or using two screws.



Type K07C-40
Width 45 mm
Alternative version listed in the source catalogue
  • Quick-connect terminals
Accessories
Standard coil voltages, 50/60 Hz B7 – 24V    D7 – 42V
E7 – 48V    F7 – 110/125V
M7 – 220/240V    Q7 – 380/415V
R7 – 440V    S7 – 480/520V

Back to Iskra contactor relays

Contact Appel with the type designation and application details for product selection.

Technical data
Standards
IEC/EN 60947-5-1, UL 508
Approvals CE, UL, CSA, EAC
Width 45 mm
Rated operational current AC-15 Ie single-phase 230 V 6A, single-phase 400 V 4A, single-phase 500 V 2A, single-phase 690 V    1A
Degree of protection IP 20
Weight
0,16 kg
